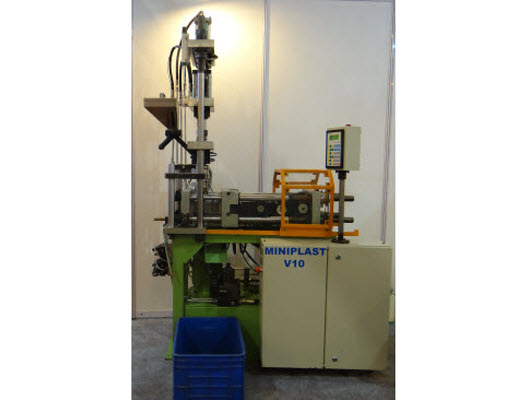

MiniPlast V10 Machine

Specification Table

Sr No Specification Value
1 LOCKING FORCE 10 T
2 MOULD OPENING STROKE 110 MM
3 MINIMUM MOULD HEIGHT 125 MM
4 MAX. MOULD HEIGHT 250 MM
5 TIE BAR DISTANCE 210X210
6 SHOT WEIGHT 7,11,25 GMS
7 SCREW DIA 18/20/28 MM
8 MOTOR 3 HP
9 HEATING 1.5 KW

Features

  • • Fastest cycle time – dry cycle time – 4 sec.
  • • Power consumption per hour less than 2 kw (around rs.80/- per shift)
  • • Simple moulds- in fastest time with less cost
  • • Fastest mould change over time
  • • Rigid and highly reliable construction ensures working for decades
  • • Low or zero maintanance
  • • Works with all engineering plastics
  • • Ideal for small and precesion components.
  • • Hardened tie bars, pb bushes, and pu wipers ensures long life
  • • Rigid locking system
  • • Built to work for 24x7
  • • Application: automobile, toys, aerospace, proto moulds, prosthodontics, and general application

Watch Working Video
